Brushless DC motors

Compact, light, quiet

Product features

ASPINA supplies small and efficient brushless DC motors, offering a choice of both inner rotor and outer rotor motors to suit your requirements.

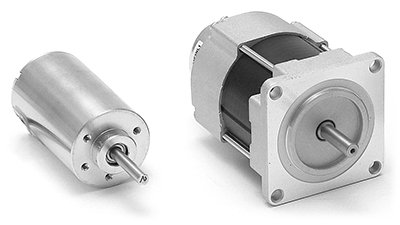

Inner rotor motors

Featuring lower moment of inertia and superior stopping performance due to the rotating structure being located close to the centerline, this type of motor is well-suited to high-speed or variable-speed fan drive applications.

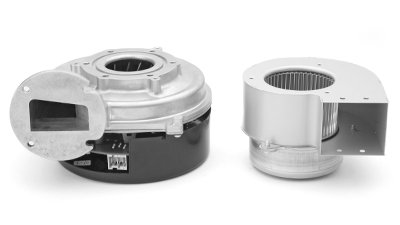

The range includes both low-voltage (DC24V) and high-voltage (DC100/200V) models, with the latter in particular offering small size and high efficiency. Along with standalone motors, ASPINA also supplies models that incorporate a sirocco or turbo fan.

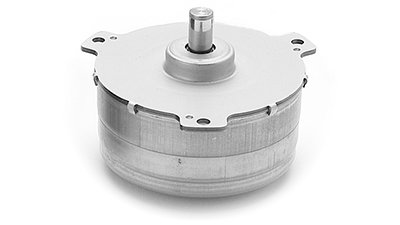

Outer rotor motors

Featuring flat and slim designs that deliver high torque relative to their size as well as excellent speed stability when running at constant speed, this type of motor is well-suited to applications that demand precise speed and products where space is an important factor. Examples include mechanical systems in which gear cutters or gears and pulleys are press-fitted to the motor shaft.

Product range

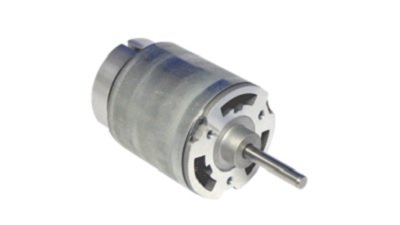

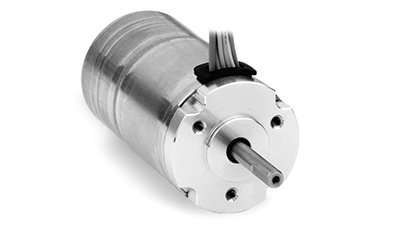

SDR-3434 series

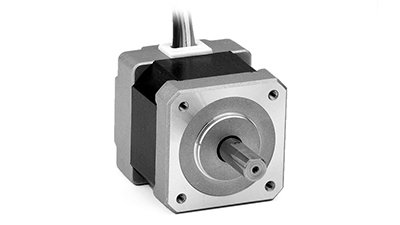

SDR-42310 series

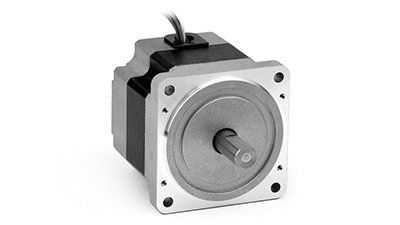

SDR-6038 series

Series Size (mm) Model Length (mm) Rated speed (r/min) Torque (mN·m)
Inner rotor Φ36 SDR-3434-001 66.1 10,500 0 to 30
Inner rotor Φ36 SDR-3434-002 66.1 10,500 0 to 30
Inner rotor Φ36 SDR-3434-004 66.1 10,500 0 to 30
Inner rotor □42 SDR-42310-001 45.5 3,000 30 to 100
Inner rotor □42 SDR-42310-002 45.5 3,000 30 to 100
Inner rotor □60 SDR-6038-001 55.2 3,100 100 to 200
Inner rotor □60 SDR-6038-002 55.2 3,100 100 to 200

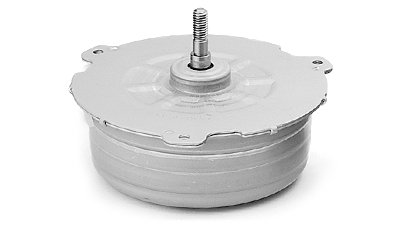

DR-35314

DR-55310, DR-6236, DR-7538, DR-7638, DR-82316, DR-8738, DR-8238

Series Size (mm) Model Length (mm) Rated speed (r/min) Torque (mN·m)
Outer rotor Φ35 DR-35314 46.0 3,200 50 to 300
Outer rotor Φ55 DR-55310 32.74 3,000 0 to 60
Outer rotor Φ63 DR-6236 43.0 1,800 5 to 15
Outer rotor Φ75 DR-7538 34.05 3,100 0 to 10
Outer rotor Φ76 DR-7638 43.0 1,800 15 to 25
Outer rotor Φ82 DR-82316 27.0 2,000 15 to 23
Outer rotor Φ87 DR-8738 60.0 1,800 25 to 41
Outer rotor Φ82 DR-8238 60.0 1,400 41 to 51

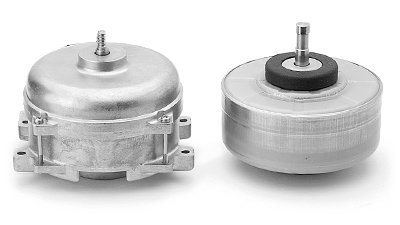

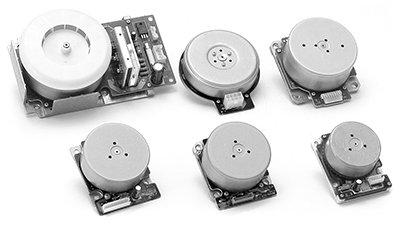

DR-6638, DR-738,
DR-7738

DR-8538(Low), DR-8538-6,
DR-8538-8, DR-8538-12

DRA-8538, DR-8838,
DR-9538, DR-9538(Thin)

LA052-040, LA052-080, LA052-110

Series Size (mm) Model Length (mm) Rated speed (r/min) Torque (mN·m)
Inner rotor Φ68 DR-6638 36.6 4,950 0 to 40
Inner rotor Φ68 36.6 1,500 0 to 80
Inner rotor Φ79 DR-738 35.8 6,000 20 to 50
Inner rotor Φ79 DR-7738 39.1 6,000 40 to 100
Inner rotor Φ88.2 DR-8538(Low) 39.2 6,300 60 to 100
Inner rotor Φ88.2 DR-8538-6 35.8 6,500 60 to 100
Inner rotor Φ88.2 DR-8538-8 39.2 6,500 70 to 100
Inner rotor Φ88.2 DR-8538-12 45.8 5,330 80 to 300
Inner rotor Φ88.2 DRA-8538 55.0 1,500 40 to 150
Inner rotor Φ93 DR-8838 39.0 1,800 140 to 320
Inner rotor Φ97.4 DR-9538 57.6 850 240 to 420
Inner rotor Φ97.4 DR-9538(Thin) 51.6 2,000 240 to 300
Inner rotor □54 LA052-040 69.6 3,000 10 to 130
Inner rotor □54 LA052-080 69.6 3,000 130 to 260
Inner rotor □54 LA052-110 89.6 3,000 260 to 360

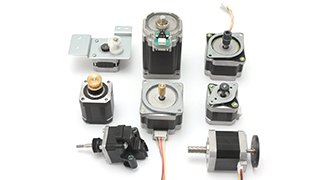

Customization

ASPINA drive systems and precision motors can be customized in a myriad of different ways, ranging from changes to the shaft configuration or motor mounts to the control circuit and software or fans, gears, and other power transmission mechanisms.

  • Shaft (Changes in shaft length, helical gears, knurling, keying, D cutting, pulleys, and hollow shafts)
  • Mount (Plates, brackets, mount dampers, mounting holes)
  • Control circuit
  • Geared motors
  • Blower and fan motors and more...

ASPINA's engineering capabilities

  • Technology and expertise built up over more than 50 years as a developer and manufacturer of motors, precision equipment and electronic devices
  • Our mechanical, electrical, and software design engineers have experience in a wide range of development work, extending from components such as motors to end-user products
  • All of the sales companies in our global network are staffed with skilled engineers
  • Quality management systems certified for industries with stringent quality and safety requirements such as automotive and medical
  • In-house manufacturing adaptable to changing demand and global distribution network

Proven performance

  • Total number of drive systems and motor models: More than 8,000
  • Percentage of drive systems and motors that are customized: More than 95%
  • ASPINA products have been chosen by numerous market-leading companies in a range of industries, both in consumer and enterprise applications
  • ASPINA products are supplied to major automotive manufacturers all around the world and recognized in the automotive industry
  • Total number of registered customers: More than 2,000
